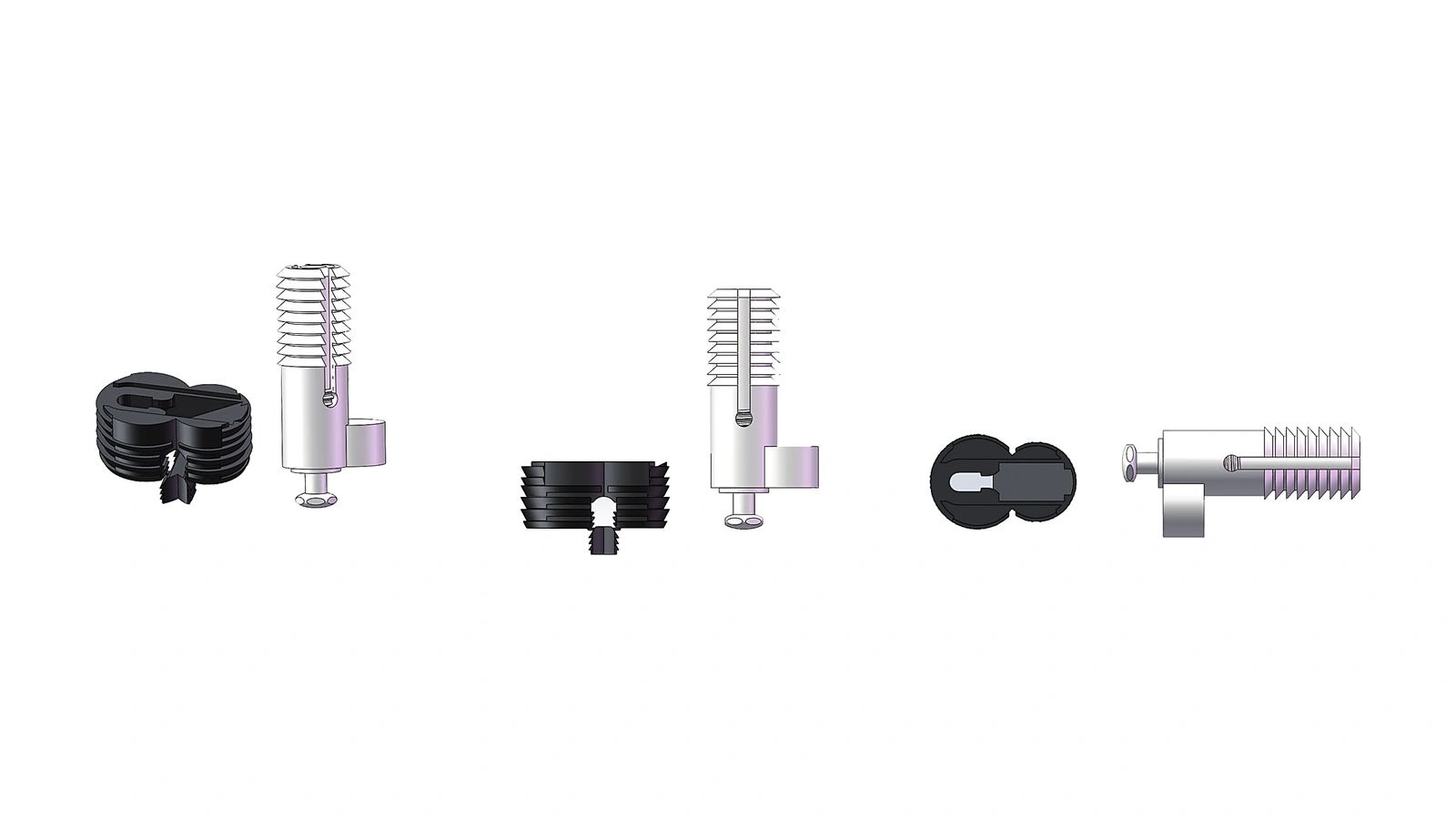

Model D001-SDrillingTool-free final assembly
D001-S
A drilling-type connector for full cabinet assembly in 16–25 mm panels.
- Application
- Full cabinet assembly
- Thickness
- 16–25 mm
Technical product catalog / 01
Compare connectors by application and production process.
For cabinet carcasses, drawer boxes and other panel-to-panel structures, start with machining compatibility, then confirm the joint direction and panel thickness before requesting samples.
Model D001-S
Model D001DrillingTool-free final assembly
D001
A drilling-type connector for full cabinet assembly in 16–25 mm panels.
- Application
- Full cabinet assembly
- Thickness
- 16–25 mm
Model D001-9DrillingTool-free final assembly
D001-9
A drilling-type connector for 45° miter and surface-to-surface joints, with an application-specific panel range for each joint.
- Application
- 45° miter joint / Surface-to-surface connection
- Thickness
- 18–25 mm / 16–25 mm

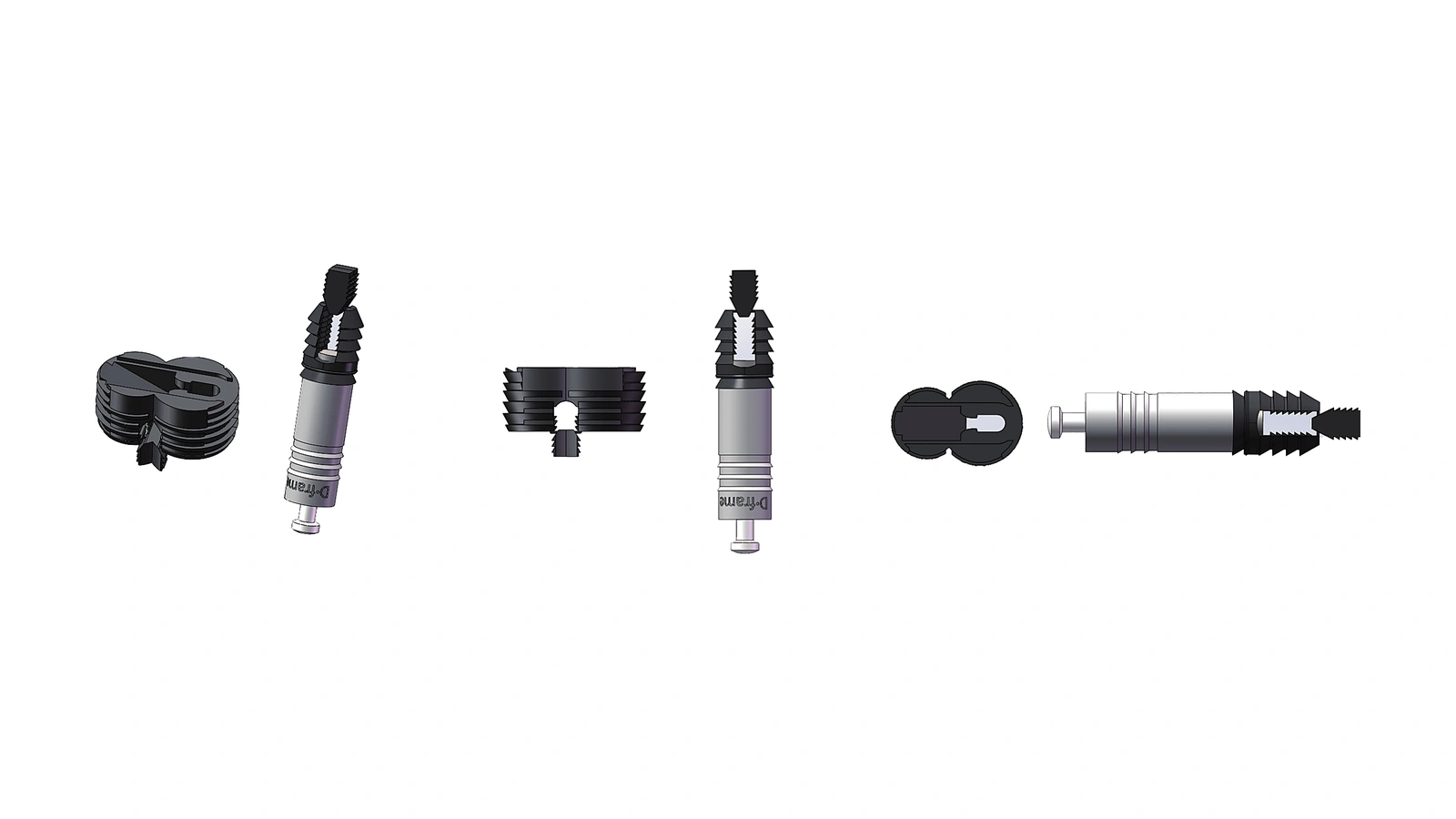

Model D002DrillingTool-free final assembly
D002
A drilling-type connector for concealed full cabinet assembly.
- Application
- Full cabinet assembly
- Thickness
- 16–25 mm

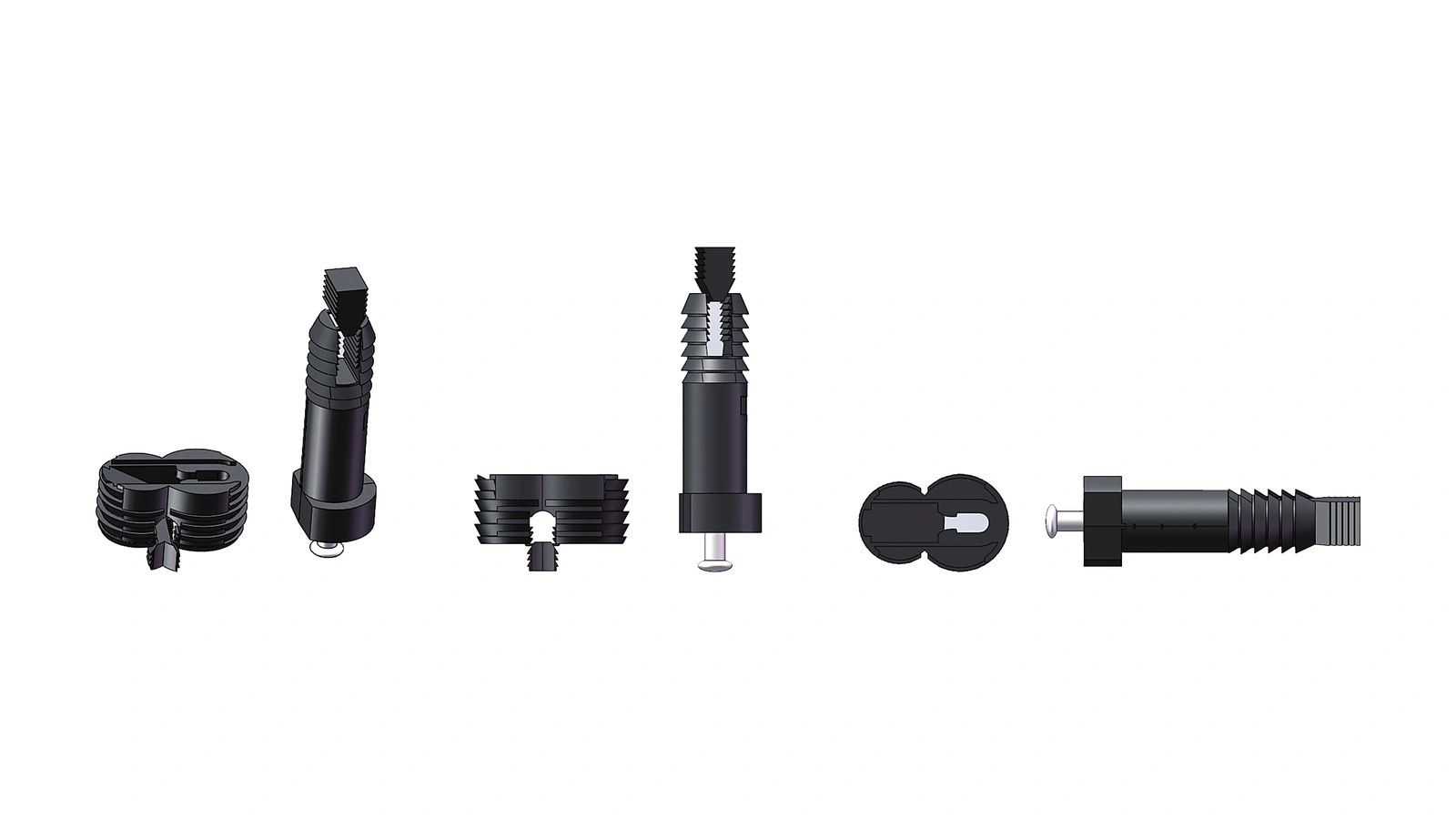

Model D002-1DrillingConfirm specification
D002-1
A drilling-type connector for internal shelf connections in 16–25 mm panels.
- Application
- Internal shelf connection
- Thickness
- 16–25 mm

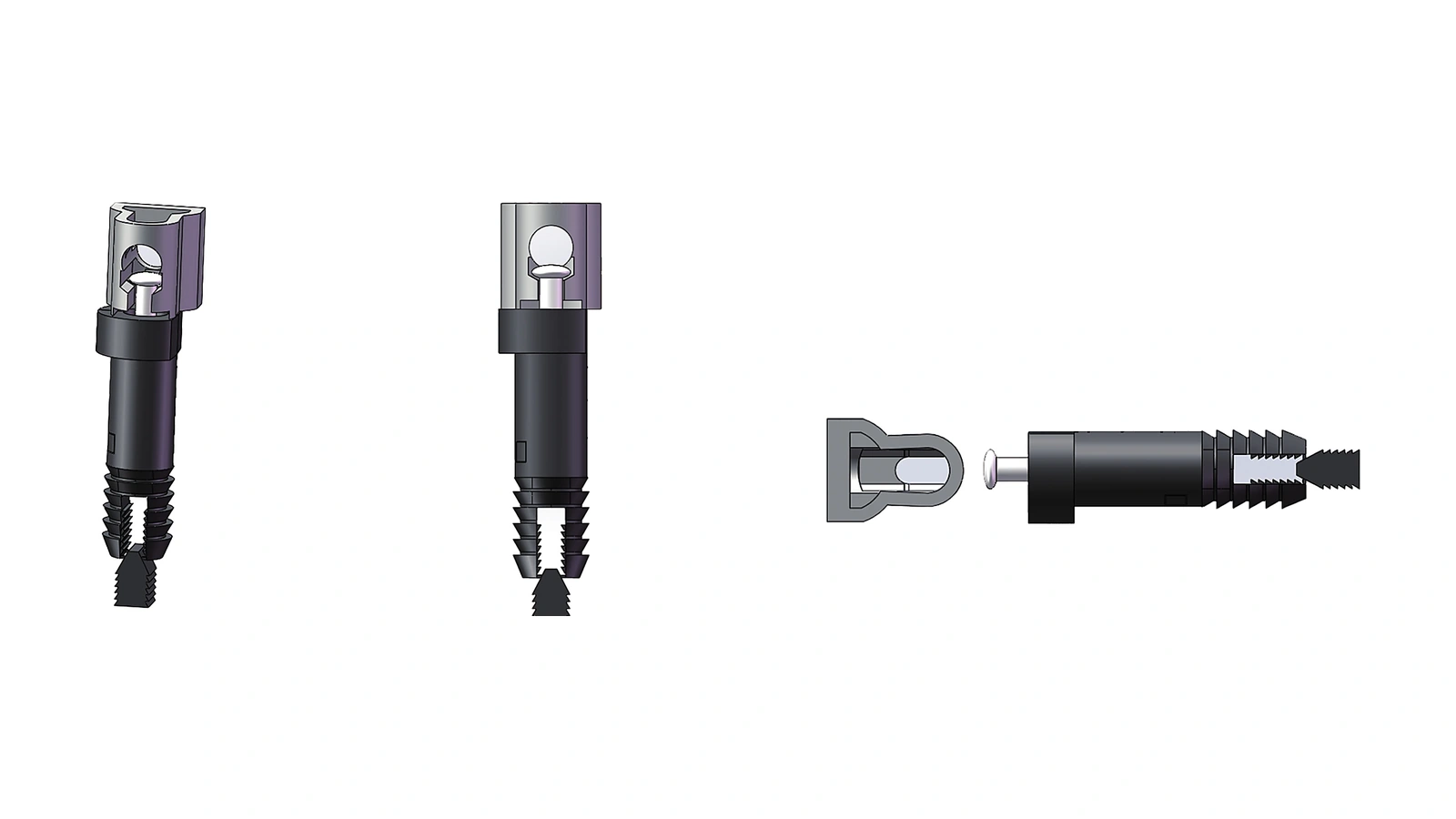

Model T005-1Drilling
T005-1
A dedicated drilling-type connector for thick back panel connections.
- Application
- Thick back panel connection
- Thickness
- Contact for specification

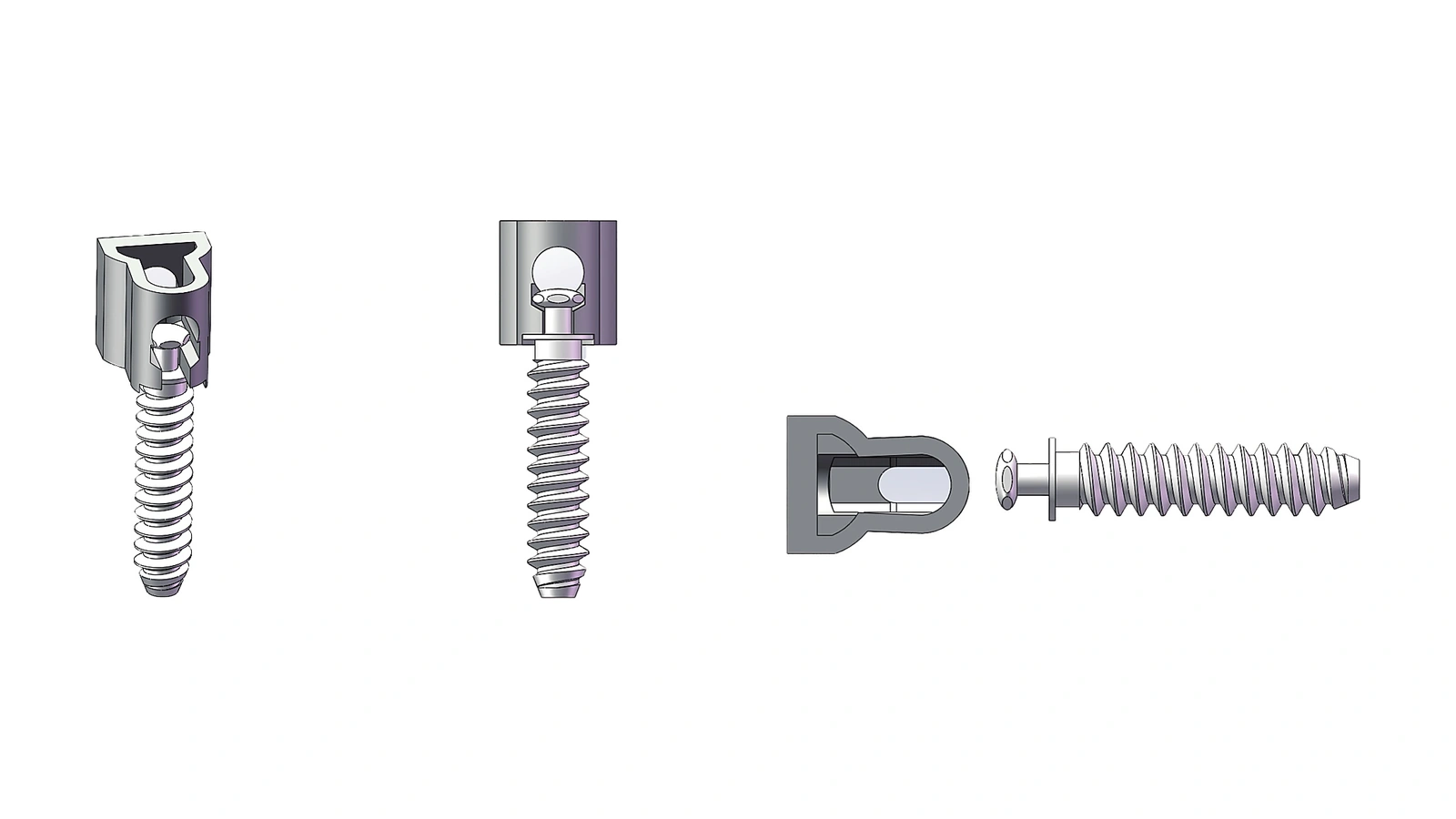

Model T005-2Drilling
T005-2
A dedicated drilling-type connector for thick back panel connections.
- Application
- Thick back panel connection
- Thickness
- Contact for specification
Model S001Slotting / groovingTool-free final assembly
S001
A grooving-type connector for full cabinet assembly in 12–18 mm panels.
- Application
- Full cabinet assembly
- Thickness
- 12–18 mm

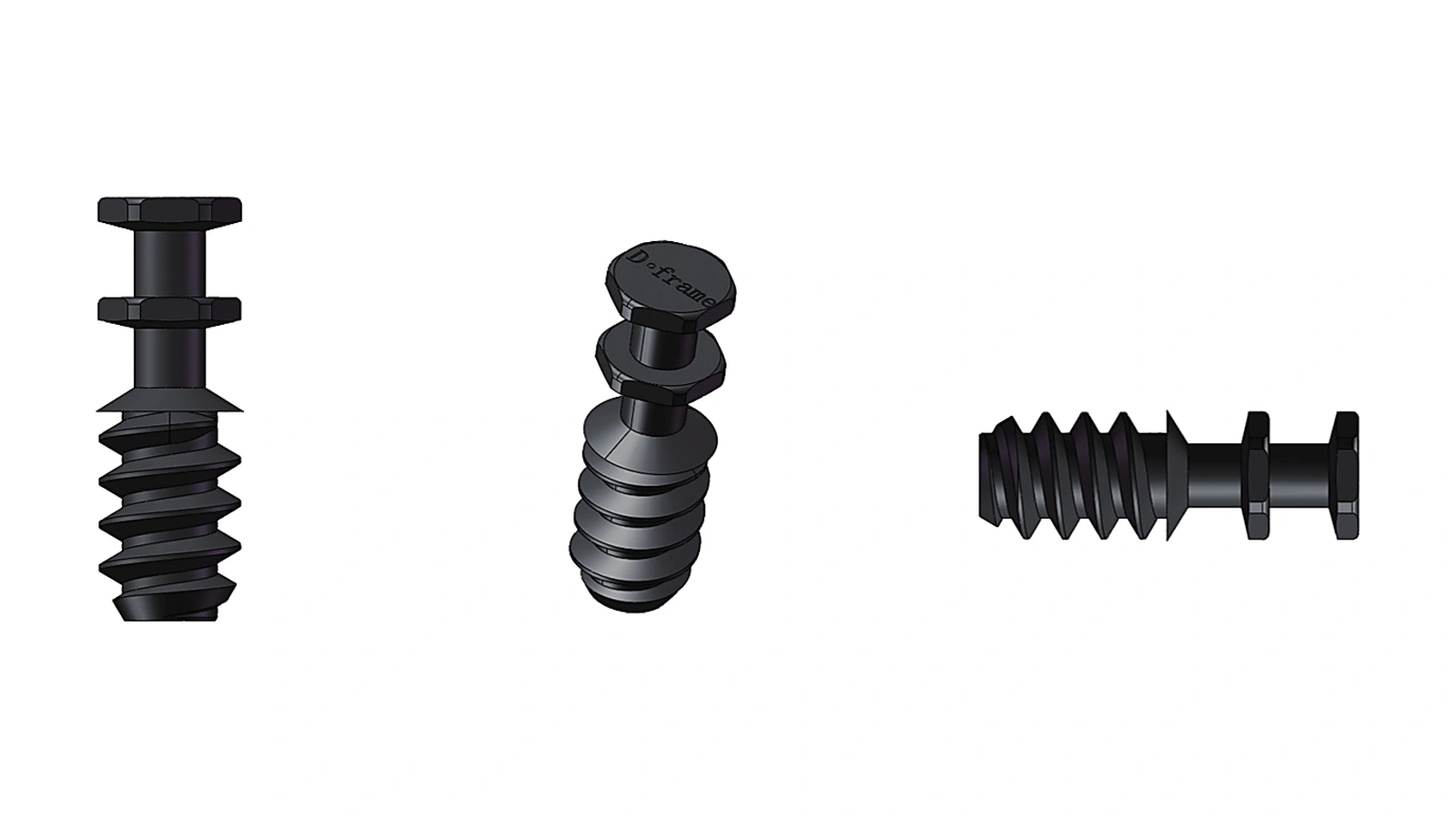

Model S001-9Slotting / groovingTool-free final assembly
S001-9
A grooving-type connector for 45° miter and surface-to-surface joints, with an application-specific panel range for each joint.
- Application
- 45° miter joint / Surface-to-surface connection
- Thickness
- 18–25 mm / 12–18 mm

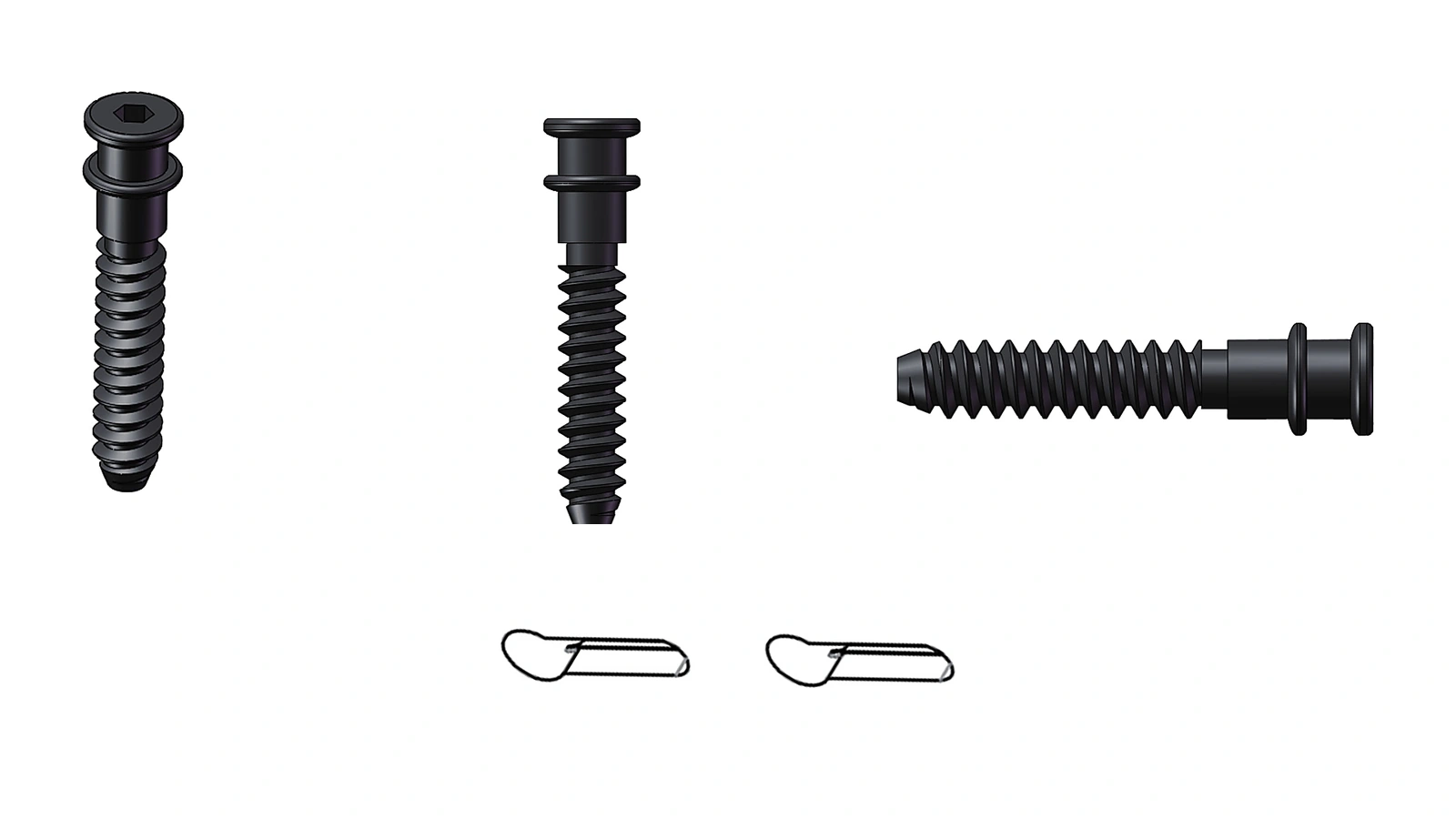

Model S002Slotting / groovingTool-free final assembly
S002
A grooving-type connector for full cabinet assembly in 18–36 mm panels.
- Application
- Full cabinet assembly
- Thickness
- 18–36 mm
Engineering next step
Move from shortlist to a real sample test
Share your application, panel material, thickness and machining route so we can prepare the right sample discussion.
