CNC machining
Drill or groove the panels to the requirements of the selected connector and joint.
Slotting / groovingTool-free final assembly
S002
A grooving-type connector for full cabinet assembly in 18–36 mm panels.
Best evaluation fit: Full cabinet assembly in thicker panel constructions using a slotting or grooving machining path.
Model S002- Process
- Slotting / grooving
- Applications
- Full cabinet assembly
- Tensile
- 900 N
- Shear load
- 260 kg
- Anti-detachment
- 200 N
- Machining route
- Slotting / grooving
- Applications
- 1
- Panel selection
- 18–36 mm
- Final assembly
- Tool-free after preparation
Where it fits
Application-specific data
Check the panel range for the exact joint before selection.
| Application | Panel thickness | Machining route |
|---|---|---|
| Full cabinet assembly | 18–36 mm | Slotting / grooving |
Final assembly method
Tool-free after production preparation.
Align and engage the prepared panels after the grooving-type connector components have been pre-installed in the machined slots.
CNC machining and connector pre-installation are required before final furniture assembly.
02
Connector pre-installation
Install the connector components during furniture production and verify their orientation.
03
Tool-free final assembly
Align and engage the prepared panels at final assembly without an additional assembly tool, where the application has been validated.

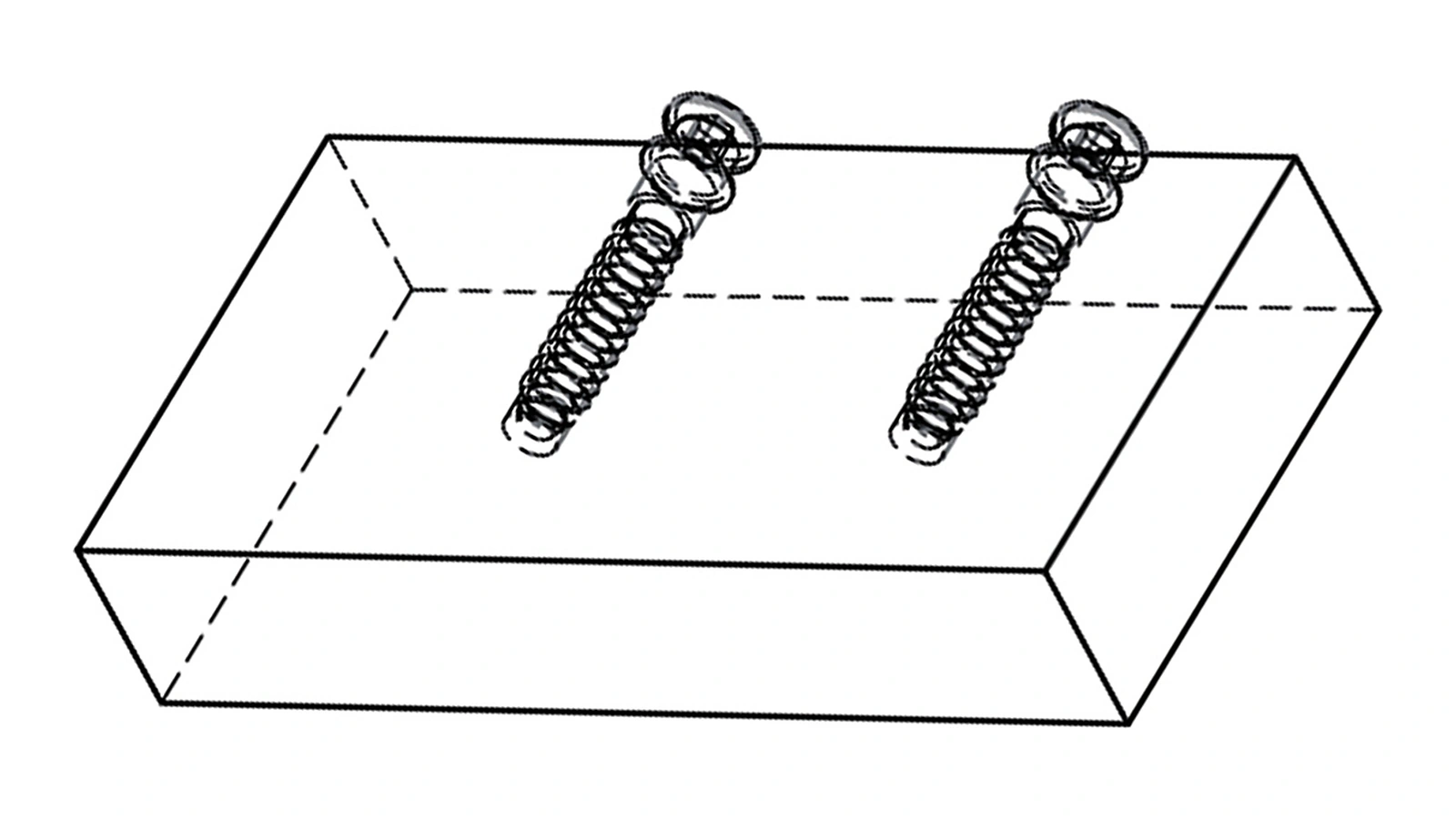

Connection view
See how the connector sits in the joint.
Confirm orientation, panel relationship and assembly access before sample testing.
Full cabinet assembly
Joint selection data
- Panel range
- 18–36 mm
- Machining
- Slotting / grooving
Performance data
Compare the published values
Use these figures to compare models, then test the selected connector in the intended board material and machining setup.
Tensile force
900 N
Load-bearing shear
260 kg
Anti-detachment force
200 N
Before production: Test the connector in your own board material, edge distance, machining tolerance and assembly conditions.
Evaluation workflow
From technical page to pilot assembly
- Machine the required slots or grooves
- Pre-install the connector components
- Align the prepared panels
- Engage the joint during final furniture assembly
- Record fit, appearance and assembly results before production approval.
Buyer questions
Technical selection questions
Is S002 suitable for my application?
It is a candidate when your application, machining method and panel thickness match the data above.
Are machining dimensions available?
Contact engineering for the current machining reference and revision before preparing production tooling.
Can I rely on the listed forces for final design?
Use them for preliminary comparison, then conduct application-specific validation.
